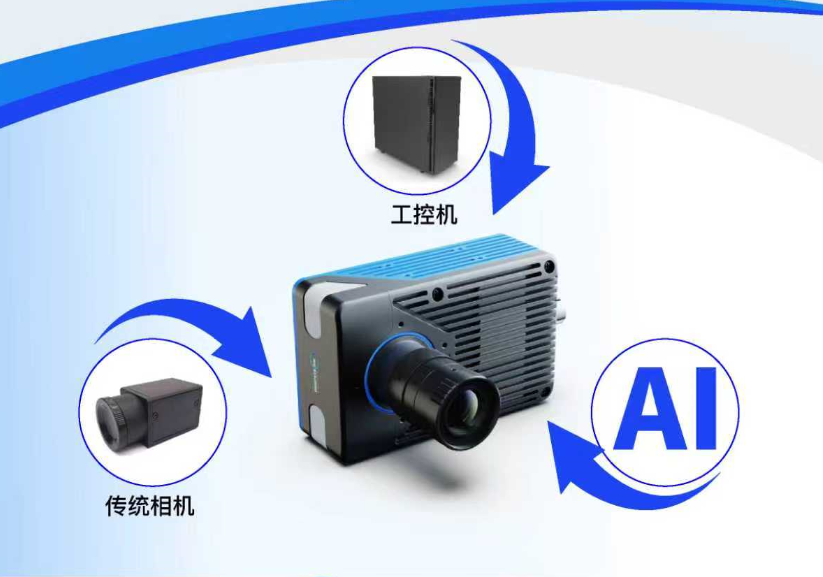

AI smart camera
published：2025-09-29
Views：16
Source：深度视觉新闻部
Six Key Features:
1. High-Performance Computing Platform: Equipped with a quad-core 2.4GHz CPU and 8GB of RAM, it features a built-in AI accelerator card with 26TB of computing power.
2. Multiple Connectivity Options: Supports Gigabit Ethernet (PoE), built-in Wi-Fi, and Bluetooth modules.
3. Versatile Applications: Supports advanced vision tasks such as complex defect detection and human behavior detection, and can directly control robotic arms for intelligent production operations.
4. Large-Capacity Storage: Equipped with an NVMe hard drive, it is suitable for storing large amounts of image and video data.
5. Industrial-Grade Design: Designed specifically for industrial scenarios, it operates stably in harsh environments with high reliability.
6. Rich Interfaces: Multiple isolated I/O and serial ports, and support for zoom lenses.
AI Smart Camera Specifications:

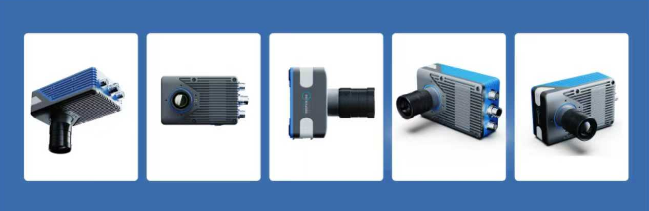

Model DV-2AI64M/DV-2AI64C
Exposure: Global Shutter
Color: Monochrome (DV-2AI64M), Color (DV-2AI64C)
Sensor Size: Type 1/1.8
Resolution: 2064 x 1544
Pixel Size: 3.5 μm x 3.5 μm
Frame Rate: Max 54 fps (full resolution)
CPU: 2.4 GHz Quad-Core 64-bit Arm
AI Acceleration Computing Power: 26 TB
Support for Multiple Model Formats: Yes
Memory: 8 GB
Storage: 1 TB NVMe
Network Port: Gigabit Ethernet (PTP Support) x1
USB Port: USB 3.0 (Type-C) x1
Display Port: HDMI x1
Isolated Output x2
Isolated Input x2
RS232 Serial Port x2
Light Source Control: 12 V DC with PWM Output
Lens C-Mount; supports auto-focus (with DV zoom lens)
Power Supply: 12VDC / PoE
Power Consumption: ≤25W
Operating Temperature: 0-40°C
Storage Temperature: -10-60°C
Humidity: <95%, non-condensing
Environmental Protection: IP67
